SOLAR-POWERED CHEMICAL INJECTION PUMP

Pneumatic Chemical Metering Pump was designed with the well pumper and the chemical man in mind. Each pump has a simple but rugged design that can be repaired in the field within minutes on the tailgate of a pickup truck.

FEATURES:

►   316 SST wetted parts

►   TFE o-rings in both checks

►   Sealed lube system

►  Timer/controller that will turn down to

PNEUMATIC PUMPS

TIMBERLINE

The Model 4000 Solar-Powered Chemical Injection Pump, released in 2009, is quickly gaining acceptance among customers and gaining recognition for its simplicity and durability.  12VDC and 120VAC models available!

Our Model 4050 Solar-Powered Methanol Pump (patent pending) utilizes temperature sensing controls which enable operators to significantly reduce methanol consumption while still offering maximum freeze protection.

FEATURES:

►   Variable-speed (continuous run) or constant-speed (on-off) operation

►   All 316 SST wetted parts (except plunger)

►   3/16”, 1/4", 3/8”, and 1/2" plunger sizes

►   Single or dual pump configuration options

►   Standard V-ring packing

►   Pumping capacity from 0.25 to 130 GPD

►   Continuous duty, high efficiency motor

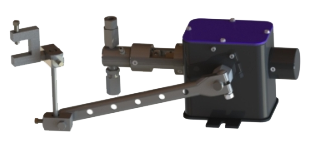

Introducing the Timberline Model 4100 chemical injection pump is designed to reliably deliver chemical by utilizing the movement of a walking beam pumping unit. Timberline Manufacturing is committed to delivering a high quality product designed to provide years of reliable service with minimal maintenance requirements.

FEATURES:

►   Ratchet Teeth and Pawl Hardened for Extended Life

►   Reversible Pawl Doubles the Pump Life Expectancy

►   Zinc Plated Steel Arm

►   Dual Head Optional for Dissimilar Fluids or Increased Volume

►   Oil Impregnated Bronze Bushings

►   Teflon Seats in Suction and Discharge Checks Provide Positive Sealing

►   V Ring Packing

►   All 316 SST Wetted Parts

►   Large Bodies Make O-rings, Ball, and Spring Easily Accessible for Simple,

     Inexpensive Replacement.

WALKING BEAM PUMPS
